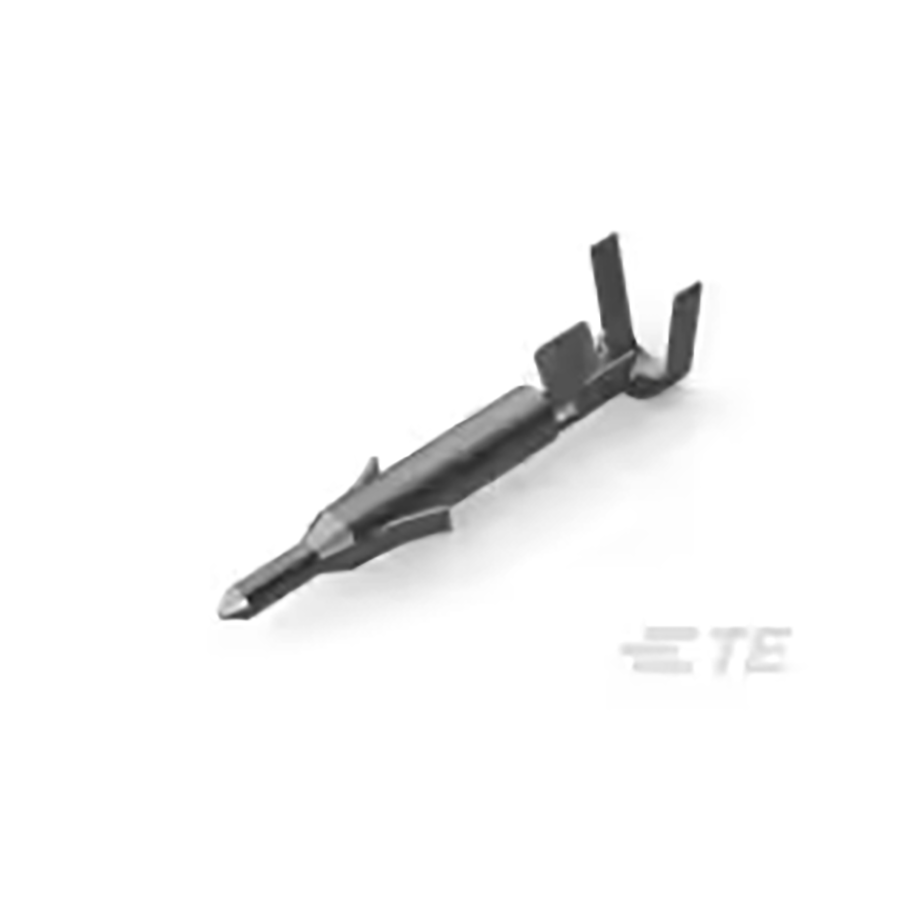

170360-4
Manufacturer:
TE Connectivity
Mfr.Part #:
170360-4
Datasheet:
Description:
IC and Component Sockets Cable Pin
| Parameter | Value |
|---|---|
| Length | 17 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 600 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Contact Resistance | 10 mΩ |
| Contact Current Rating | 7 A |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Plating | Tin |
| Insulation Diameter | 3.4036 mm |
| Plating Thickness | 800 nm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 28852
Distributors
pcbx
pcbxUnit Price$0.08776
Ext.Price$0.08776
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08776 | $0.08776 |
| 10 | $0.07384 | $0.73840 |
| 50 | $0.06620 | $3.31000 |
| 100 | $0.06294 | $6.29400 |
| 500 | $0.05618 | $28.09000 |
| 1000 | $0.05350 | $53.50000 |
| 3000 | $0.04608 | $138.24000 |
